當前位置： 首頁 > 產品總匯 > 防爆燈具類 > BTd96系列防爆投光燈（ⅡB、ⅡC）

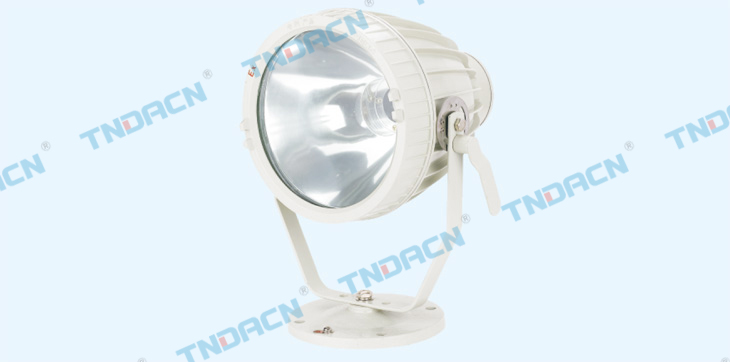

BTd96系列防爆投光燈（ⅡB、ⅡC）

詳細信息

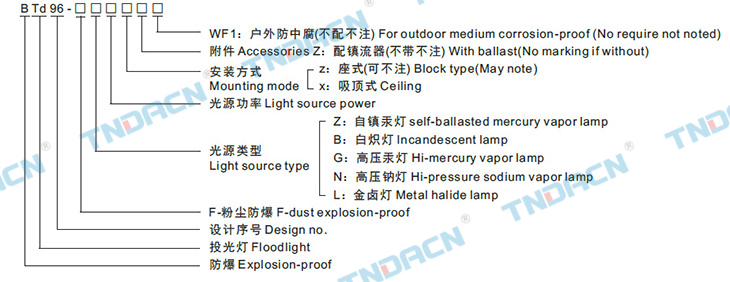

型號含義 Modelimplication

適用范圍 Applications

1.1區、2區危險場所或20區、21區、22區危險場所；
2.ⅡA、ⅡB、ⅡC爆炸性氣體環境或可燃性粉塵環境；
3.戶內、戶外(IP54、IP65*)；
4.溫度組別：T1~T4/T5/T6；
5.注：當用作增安型時，不配鈉燈。
6.應用于石油、化工、航天、軍工等場所。

1.Hazardous:division 1 &2,or 20,21,&22;
2.Explosive gas atmosphers: classⅡA ⅡB ⅡC or
inflammable dust environment;
3.Indoor or outdoor(IP54,IP65*);
4.Temperature class:T1~T4/T5/T6;
5.Note: If of safety-increased type, it is not suitable for sodium
vapor lamp.
6.Widely using in the fields of oil ,Chemical industry, spaceflight,
war ind-ustry and so on.

產品特點 Features

1.殼體采用高強度合金鋁一次性壓鑄成型，表面經高速拋丸清理后高壓靜電噴塑。外殼結構緊湊合理、材質密度高強度好、 防爆性能優良，表面塑粉附著力強具有良好的防腐能力，表面光潔，美觀大方；
2.燈體在水平旋轉360°，仰角 + 90°~ -60°內可調；
3.燈罩材質采用鋼化玻璃，透光性好，反光罩經過嚴格的二次光學設計，并經過實際測試的驗證，其采用高純鋁并經處理，反光率高，聚光性好；
4.有較強的防水性能，可用于石油平臺及油輪船舶等場所。
5.電纜布線。
1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spray. Shell compact structure, high density material strength, Explosion-proof performance, the surface of plastic powder adhesion ability with good anti-corrosion, the surface smooth, elegant appearance;
2.It can be rotated 360°horizontally and adjusted in the range of +90°~ -60°.
3.Lamp housing is made of tempered glass with great transmittance,Focusing structure is in the lamp with Ⅱ type,and it can adjust the long distnce and short distance. The reflect should get special softwaredesign of distrbution for two times, and it can have the confirmation of actual test. After treating with high puity aluminum, it has great reflection and spotlight.
4.Using in the petroleum platform, tanker, ships and so on, has fine water proof function.
5.Wiring with cables.

主要技術參數 Main technical parameters

防爆標志
Ex-mark		 防護等級
Protection grade		 電纜外徑(φ,mm)
Cable's outer diameter		 進線口螺紋(G")
Inlet's thread		 防腐等級
Corrosion-proof
ExeⅡT3等效于 Ⅱ2G ExeⅡT3(歐標)
ExnRⅡT3等效于 Ⅱ2G ExnRⅡT3(歐標)
DIP A20 TA,T3等效于 Ⅱ1D ExtD A20 T3(歐標)		 IP65 10~14 3/4"
E27


光源類型
Lamp type		 額定電壓(V)
Rated voltage		 額定功率(W)
Rated power
自鎮汞燈 self-ballasted mercury vapor lamp
白熾燈 Incandescent lamp
高壓汞燈 Hi-mercury vapor lamp
金鹵燈 Metal halide lamp
高壓鈉燈 Hi-pressure sodium vapor lamp
220
220
220
220
220
125,160
200
80,125
70,100
70,110

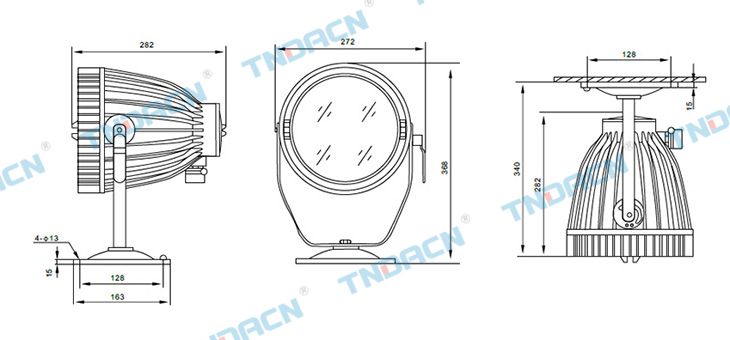

外形及安裝尺寸 Outline&installation dimension
